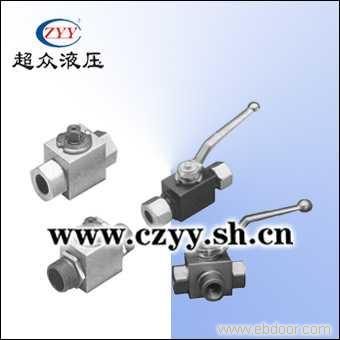

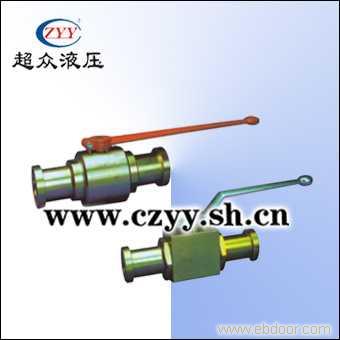

KH系列高压球阀
(一)简介 　　　　适用于工业管路。作为启闭装置。 (二)技术参数 　　　　阀体材料 　　　　密封材料 　　　　适用温度 　　　　适用范围
(三)型号说明
(四)安装连接尺寸 型号 Tubeo.d. DN L1 L2 B H H1 H2 S2 S3 S1 R Type Partno Kg per100 pcs LLightPB 315 6 4 53 82 20 25 10 55 14 19 7 76 KH 6-ZL KH06ZL 21.9 8 6 53 82 20 25 10 55 17 19 7 76 KH 8-ZL KH08ZL 22.6 10 8 61 90 30 35 14.5 68 19 24 8 100 KH 10-ZL KH10ZL 46.4 12 10 61 90 30 35 14.5 68 22 24 8 100 KH 12-ZL KH12ZL 47.0 15 12 69 99 35 40 17 92 27 30 10 112 KH 15-ZL KH15ZL 72.7 18 16 67 99 45 45 20 105 32 36 11 166 KH 18-ZL KH18ZL 99.0 PB 160 22 20 84 116 45 55 24 113 36 41 14 187 KH 22-ZL KH22ZL 139.9 28 25 93 136 55 60 26 118 41 50 14 187 KH 28-ZL KH28ZL 196.3 35 32 100 143 73 80 36.5 104.5 50 60 17 240 KH 35-ZL KH35ZL 267.1 42 40 96 141 85 90 42.5 114.5 60 70 17 240 KH 42-ZL KH42ZL 358.8 SHeavyPB 500 8 4 59 88 20 25 10 55 19 19 7 76 KH 8-ZS KH08ZS 26.0 10 6 58 90 20 25 10 55 22 19 7 76 KH 10-ZS KH10ZS 28.5 12 8 62 94 30 35 14.5 68 24 24 8 100 KH 12-ZS KH12ZS 50.9 14 10 65 100 30 35 14.5 68 27 24 8 100 KH 14-ZS KH14ZS 55.1 PB 400 16 12 70 106 35 40 17 92 30 30 10 112 KH 16-ZS KH16ZS 79.3 20 16 69 112 40 45 20 105 36 36 11 166 KH 20-ZS KH20ZS 112.6 PB 315 25 20 83 131 45 55 24 113 46 41 14 187 KH 25-ZS KH25ZS 232.2 30 25 93 146 55 60 26 118 50 50 14 187 KH 30-ZS KH30ZS 237.7 38 32 95 156 73 80 36.5 104.5 60 60 17 240 KH 38-ZS KH38ZS 318.7 型号标记 DN PN D1 i L L2 ∫ B H m H2 SW1 SW2 K LW 重量 碳钢 不锈钢 KH1/8X     4 500 G1/8 12 69 34.5 36 20 25 10.0 55.0 7 19 76 6 220 KH2/8X KH1/871X 6 500 G1/4 12 69 34.5 36 20 25 10.0 55.5 7 19 76 6 210 KH3/8X KH2/871X 10 500 G3/8 14 73 36.5 45 30 35 14.5 68.0 8 24 100 10 430 KH4/8X KH3/871X 12 500 G1/2 16 82 41 51 35 40 17.0 92.0 10 30 112 12 670 KH5/8X KH1/271X 16 400 G5/8 18 88 44 50 40 45 20.0 105.0 11 36 166 16 973 KH6/8X     20 315 G3/4 19 93 46.5 60 45 55 24.0 113.0 14 41 187 20 1280 KH1X KH6/871X 25 315 G1 22 113 58.5 70 55 60 26.0 118.0 14 50 187 25 1982 KH11/4X KH171X 32 315 G11/4 20 110 55 70 73 80 36.5 104.5 17 60 240 30 2450 KH11/4DN25X KH11/471X 25 315 G11/4 20 134 67 70 55 60 26.0 118.0 14 55 187 23 2050 KH11/2X     40 315 G11/2 22 114 58.5 75 85 90 42.5 114.5 17 70 240 36 3401 KH11/2DN25X KH11/271X 25 315 G11/2 22 139 57.0 70 55 60 26.0 118.0 14 55 187 25 2200 型号标记 DN PN D1 i L L2 ∫ B H M H2 SW1 SW2 K LW 重量kg 碳钢 不锈钢 KH1/8NPTX KH1/8NPT71X 4 500 1/8″-27 NPT 7.0 69 34.5 36 20 25 10.0 55.0 7 19 76 6 225 KH2/8NPTX KH2/8NPT71X 6 500 1/4″-18 NPT 10.0 69 34.5 36 20 25 10.0 55.5 7 19 76 6 210 KH3/8NPTX KH3/8NPT71X 10 500 3/8″-18 NPT 10.4 73 36.5 45 30 35 14.5 68.0 8 24 100 10 430 KH4/8NPTX KH4/8NPT71X 12 500 1/2″-14 NPT 13.6 82 41 51 35 40 17.0 92.0 10 30 112 12 670 KH6/8NPTX KH6/8NPT71X 20 315 3/4″-14 NPT 14.0 93 46.5 60 45 55 24.0 113.0 14 41 187 17 1280 KH1NPTX KH1NPT71X 25 315 1″-111/2 NPT 16.8 113 56.5 70 55 60 26.0 118.0 14 50 187 23 1970 KH11/4NPTX KH11/4NPT71X 32 315 11/4″-111/2 NPT 17.3 110 58.5 70 73 80 36.5 104.5 17 60 240 30 2370 KH11/2NPTX KH11/2NPT71X 40 315 11/2″-111/2 NPT 17.3 114 57.0 75 85 90 42.5 114.5 17 70 240 36 3170 型号 DN PN D1 i L L1 b B H m H2 SW1 SW2 K LW 重量克/件 DPR碳钢 KH3/2-1/8X 4 500 G1/8 1/8″-27NPT 12 69 16.5 34.5 20 25 10.0 55 7 19 76 6 34 KH3/2-2/8X 6 500 G1/4 1/4″-18NPT 12 69 16.5 34.5 20 25 10.0 5 7 19 76 6 250 KH3/2-3/8X 10 500 G3/8 3/8″-18NPT 14 73 14 36.5 30 35 14.5 68 8 24 100 10 484 KH3/2-4/8X 12 500 G1/2 1/2″-14NPT 15 82 15.5 41 35 40 17.0 92 10 30 112 12 741 KH3/2-6/8X 20 315 G3/4 3/4″-14NPT 18 93 16.5 46.5 45 55 24.0 113 14 41 187 18 1426 KH3/2-1X 25 315 G1 1″-111/2 NPT 20 113 21.5 56.5 55 60 26.0 118 14 50 187 23 2203 系列 型号 钢管外径ФO.D. DN PN L L1 L2 B b H m H2 SW1 SW2 SW K LW M 重量克/件 EO-2碳钢 DPR碳钢 L ( 轻 系 列) KH3/2-06ZL KH3/2-06L 06 4 315 82 36 53 20 41.0 25 10.0 55 7 14 19 76 6 12X1.5 34 KH3/2-08ZL KH3/2-08L 08 6 315 82 36 53 20 41.0 25 10.0 55 7 17 19 76 6 14X1.5 51 KH3/2-10ZL KH3/2-10L 10 8 315 90 45 61 30 45.0 35 14.5 68 8 19 24 100 10 16X1.5 63 KH3/2-12ZL KH3/2-12L 12 10 315 90 45 61 30 45.0 35 14.5 68 8 22 24 100 10 18X1.5 532 KH3/2-15ZL KH3/2-15L 15 12 315 99 51 69 35 49.5 40 17.0 92 10 27 30 112 12 22X1.5 817 KH3/2-18ZL KH3/2-18L 18 16 315 99 50 67 45, 49.5 45 20.0 102 11 32 36 166 16 26X1.5 204 KH3/2-22ZL KH3/2-22L 22 20 160 116 60 84 45 58.0 55 24.0 113 14 36 41 187 20 30X2 268 KH3/2-28ZL KH3/2-28L 28 25 160 135 70 93 55 68.0 60 26.0 118 14 41 50 187 23 36X2 295 L (重 系   列) KH3/2-08ZS KH3/2-08S 08 4 500 88 36 59 50 44.0 25 10.0 55 7 19 19 76 6 16X1.5 67 KH3/2-10ZS KH3/2-10S 10 6 500 90 36 58 50 45.0 25 10.0 55 7 22 19 76 6 18X1.5 101 KH3/2-12ZS KH3/2-12S 12 8 500 94 45 62 30 47.0 35 14.5 68 8 23 24 100 10 20X1.5 587 KH3/2-14ZS KH3/2-14S 14 10 500 100 45 65 30 50.0 35 14.5 68 8 27 24 100 10 22X1.5 114 KH3/2-16ZS KH3/2-16S 16 12 400 106 51 70 35 53.0 40 17.0 92 10 30 30 112 12 24X1.5 919 KH3/2-20ZS KH3/2-20S 20 16 400 112 60 69 45 56.0 45 20.0 105 10 36 36 166 16 30X2 1300 KH3/2-25ZS KH3/2-25S 25 20 315 131 60 83 45 65.5 55 24.0 113 14 41 41 187 18 36X2 646 KH3/2-30ZS KH3/2-30S 30 25 315 146 70 93 55 73.0 60 26.0 118 14 50 50 187 23 42X3 713
